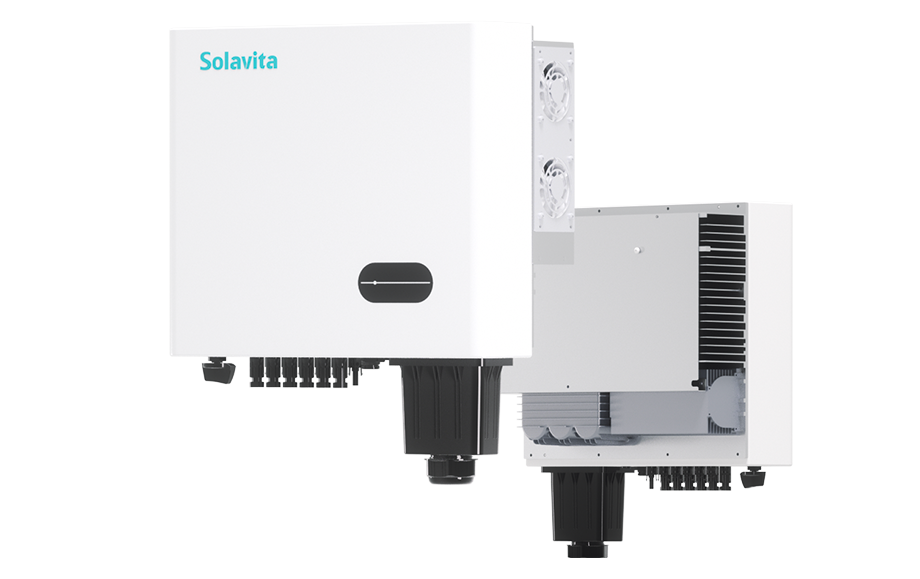

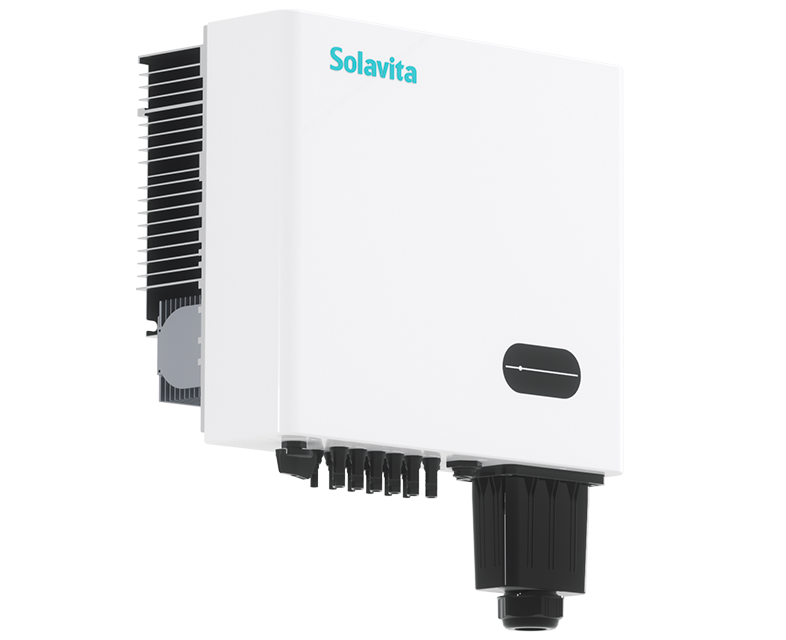

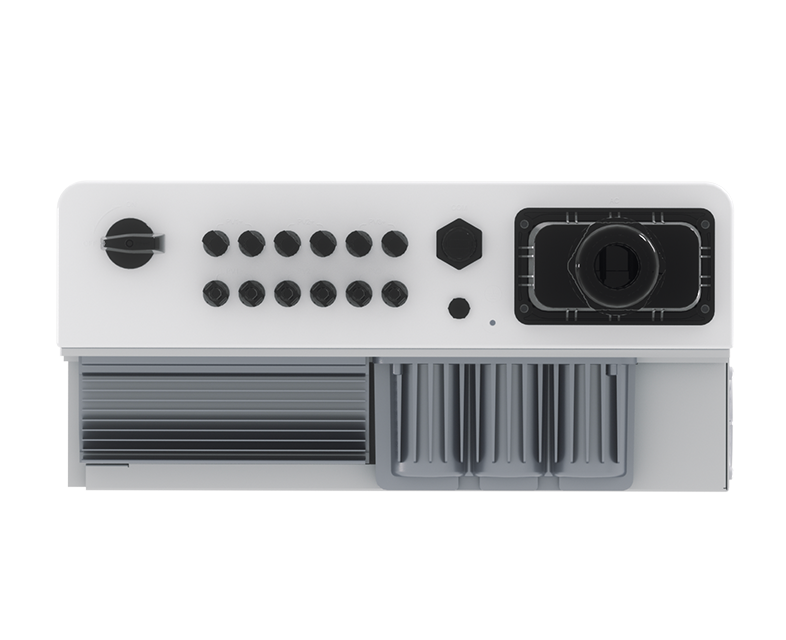

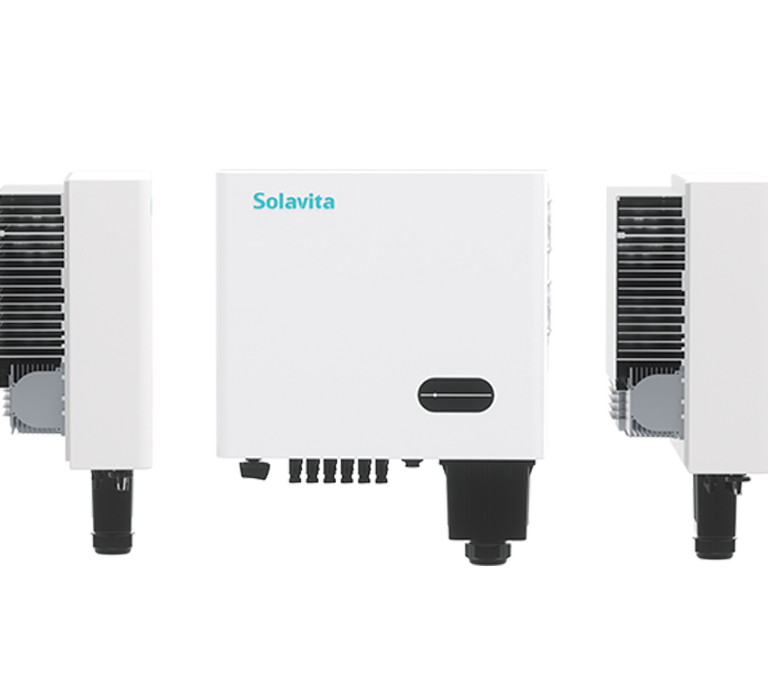

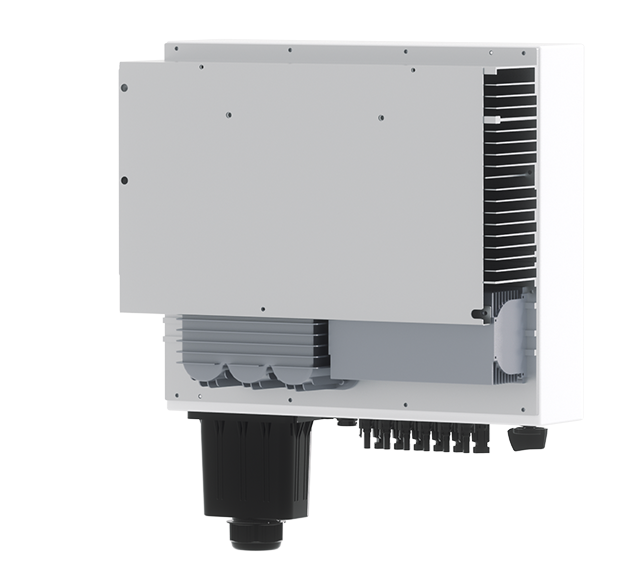

SW 30-33KTL-T2
Three Phase On Grid Inverter
Safe and Reliability
Our inverter uses key components from top international brands, ensuring superior reliability. It boasts an IP66 protection rating, making it resilient to extreme temperature variations. The inverter automatically alerts for PV reverse polarity and supports fan self-diagnosis.
-
Fan self-diagnostics, PV reverse alarm
-
IP66
-
Type Ⅱ SPD and both DC and AC
Higher power generation, Higher Return
The three-phase on-grid inverter （30-33kW）offers higher power generation efficiency, supports 1.5 times DC overloading, and features a 3-MPPT design, perfectly compatible with mainstream 182/210 PV modules. Additionally, it can operate at 1.1 times its rated capacity for extended periods without derating, ensuring efficient and stable system performance.
-
Max efficecy up to 98.6%; -
3 MPPTs and Ultra-wide MPPT voltage range -
150% DC oversizing -
Max. string current up to 32A
More friendly & Smart Design
Our three-phase on-grid inverters (30-33kW) are equipped with RS485 outputs and can be connected directly to a statute converter without the need for an additional PV converter, simplifying the wiring process and saving equipment costs. At the same time, this inverter has the smallest size and lightest weight in the industry, saving more space in your equipment room and increasing flexibility and ease of installation.
-
Smaller size -
Lighter weight -
Higher power density -
More space saving
Core Parameters
-
Max.Input Voltage1100V
-
MPPT Voltage Range160-1000V
-
Start-up Voltage200V
-
Max. Efficiency98.60%
-
Euro Efficiency98.20%
-
CommunicationWIFI/4G/RS485 (optional)
-
DC/AC Surge ProtectionIntegrated (Type Ⅱ)
-
No.of MPPT Trackers3
-
No.of PV Strings per MPPT2
-
Max. of Input Current per MPPT [A]40
Effortless Swipe, Exceptional Performance
Developed with Top-Tier Technology and Rigorous Testing, What You See Is What You Get
Product Model
-
SW030KTL-T2-E1
-
SW030KTL-T2
-
SW033KTL-T2
-
- Model
- SW030KTL-T2-E1
-
-
Max. Input Voltage [V]1100
-
MPPT Voltage Range [V]160-1000
-
Rated Input Voltage [V]600
-
Start-up Voltage [V]200
-
No. of MPPT Trackers3
-
No. of PV Strings per MPPT2/1/2
-
Max. Input Current Per MPPT [A]40/20/40
-
Max. Short Circuit Current Per MPPT [A]50/30/50
-
Rated Output Power [W]30000
-
Max. Output Appearent Power [VA]33000
-
Max. Output Current [A]48
-
Rated Grid Voltage [V]3L/N/PE; 220/380, 230/400
-
Rated Grid Frequency [Hz]50/60
-
Power Factor[cosΦ]1 (+/-0.8, adjustable)
-
Max. Efficiency98.60%
-
EU Efficiency98.20%
-
DC SwitchIntegrated
-
Insulation Resistance DetectionIntegrated
-
Input Reverse Polarity ProtectionIntegrated
-
Anti-island ProtectionIntegrated
-
Residual Current MonitoringIntegrated
-
AC Overcurrent ProtectionIntegrated
-
AC Short-Circuit ProtectionIntegrated
-
DC Surge ProtectionIntegrated (Type ll)
-
AC Surge ProtectionIntegrated (Type ll)
-
DC Arc ProtectionOptional
-
Dimensions (W*H*D)[mm]475*415*220
-
Weight [kg]24
-
DisplayLED/APP
-
CommunicationWiFi/RS485/4G(Optional)
-
Operating Temperature Range [°C]-25~+60
-
Relative Humidity0~100%
-
Operation Altitude [m]≤4000(if>2000, derating)
-
TopologyTransformerless
-
Cooling ConceptSmart Fan-cooling
-
Ingress ProtectionIP66
DC InputAC OutputEfficiencyProtectionGeneral Data -
-
- Model
- SW030KTL-T2
-
-
Max. Input Voltage [V]1100
-
MPPT Voltage Range [V]160-1000
-
Rated Input Voltage [V]600
-
Start-up Voltage [V]200
-
No. of MPPT Trackers3
-
No. of PV Strings per MPPT2
-
Max. Input Current Per MPPT [A]40
-
Max. Short Circuit Current Per MPPT [A]50
-
Rated Output Power [W]30000
-
Max. Output Appearent Power [VA]33000
-
Max. Output Current [A]48
-
Rated Grid Voltage [V]3L/N/PE; 220/380, 230/400
-
Rated Grid Frequency [Hz]50/60
-
Power Factor[cosΦ]1 (+/-0.8, adjustable)
-
Max. Efficiency98.6%
-
Euro Efficiency98.2%
-
DC SwitchIntegrated
-
Insulation Resistance DetectionIntegrated
-
Input Reverse Polarity ProtectionIntegrated
-
Anti-island ProtectionIntegrated
-
Residual Current MonitoringIntegrated
-
AC Overcurrent ProtectionIntegrated
-
AC Short-Circuit ProtectionIntegrated
-
DC Surge ProtectionIntegrated (Type ll)
-
AC Surge ProtectionIntegrated (Type ll)
-
DC Arc ProtectionOptional
-
Dimensions (W*H*D)[mm]475*415*220
-
Weight [kg]24
-
DisplayLED/APP
-
CommunicationWiFi/GPRS/4G(Optional)
-
Operating Temperature Range [°C]-25~+60
-
Relative Humidity0~100%
-
Operation Altitude [m]≤4000(if>2000, derating)
-
TopologyTransformerless
-
Cooling ConceptSmart Fan-cooling
-
Ingress ProtectionIP66
DC InputAC OutputEfficiencyProtectionGeneral Data -
-
- Model
- SW033KTL-T2
-
-
Max. Input Voltage [V]1100
-
MPPT Voltage Range [V]160-1000
-
Rated Input Voltage [V]600
-
Start-up Voltage [V]200
-
No. of MPPT Trackers3
-
No. of PV Strings per MPPT2
-
Max. Input Current Per MPPT [A]40
-
Max. Short Circuit Current Per MPPT [A]50
-
Rated Output Power [W]33000
-
Max. Output Appearent Power [VA]36300
-
Max. Output Current [A]52.6
-
Rated Grid Voltage [V]3L/N/PE; 220/380, 230/400
-
Rated Grid Frequency [Hz]50/60
-
Power Factor[cosΦ]1 (+/-0.8, adjustable)
-
Max. Efficiency98.60%
-
Euro Efficiency98.20%
-
DC SwitchIntegrated
-
Insulation Resistance DetectionIntegrated
-
Input Reverse Polarity ProtectionIntegrated
-
Anti-island ProtectionIntegrated
-
Residual Current MonitoringIntegrated
-
AC Overcurrent ProtectionIntegrated
-
AC Short-Circuit ProtectionIntegrated
-
DC Surge ProtectionIntegrated (Type ll)
-
AC Surge ProtectionIntegrated (Type ll)
-
DC Arc ProtectionOptional
-
Dimensions (W*H*D)[mm]475*415*220
-
Weight [kg]24
-
DisplayLED/APP
-
CommunicationWiFi/GPRS/4G(Optional)
-
Operating Temperature Range [°C]-25~+60
-
Relative Humidity0~100%
-
Operation Altitude [m]≤4000(if>2000, derating)
-
TopologyTransformerless
-
Cooling ConceptSmart Fan-cooling
-
Ingress ProtectionIP66
DC InputAC OutputEfficiencyProtectionGeneral Data -
-
