SWG 125KTL-T1

Three Phase On Grid Inverter (HV)

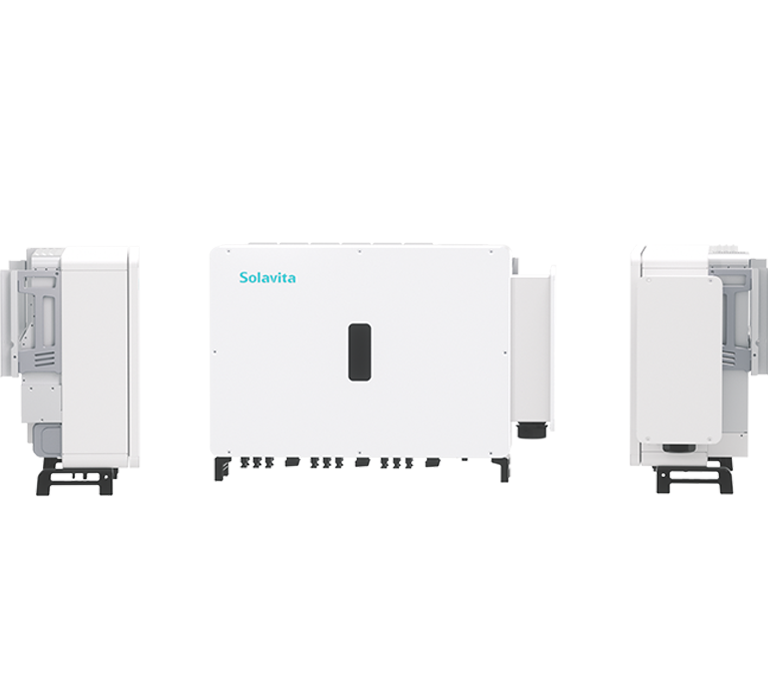

The Solavita three-phase PV inverters(125kw ) wall-mounted with the Solavita logo on the central unit. Each inverter features various connectors and a small black panel on the front, providing efficient energy management for modern energy solutions.

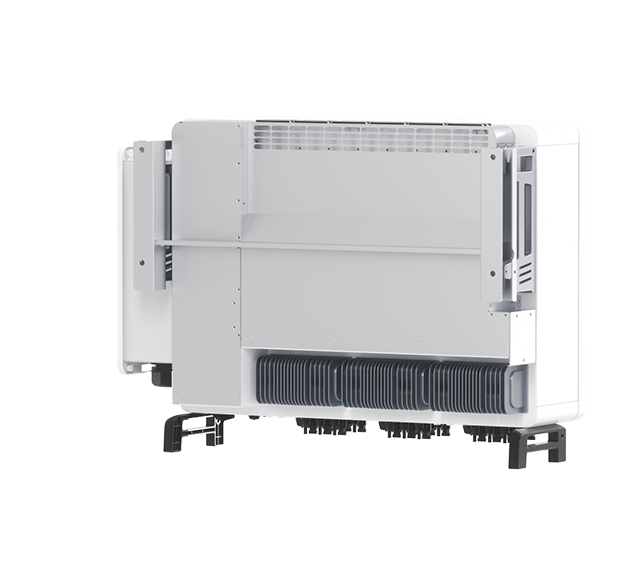

Back view of the Solavita on-grid inverter, highlighting its cooling fins and structural design for optimal heat dissipation in solar energy systems

Safe and Reliability

Equipped with IP66 protection, SWG125KTL-T1 Series endures harsh environements for stable performance throughout its life cycle. Both the DC side and AC side are equipped with Type II surge protection to protect the inverter from lightning, providing upgraded safety and reliability for the PV system.

  • icon_01.svg

    Optional AFCI & Smart PID recovery function

  • b2_icon_02.svg

    IP66

  • icon_03.svg

    Type Ⅱ SPO and both DC and AC

Higher power generation,Higher Return

The inverter offers higher power generation efficiency, supports 1.5 times DC overloading,low start-up voltage at 200V, perfectly compatible with mainstream 600W+ PV modules. Additionally, it can operate at 1.1 times its rated capacity for extended periods without derating, ensuring efficient and stable system performance,get the higher return.

  • icon_04.svg
    Low start-up voltage at 200V
  • icon_04.svg
    110% AC overloading
  • icon_04.svg
    150% DC oversizing
  • b2icon05.svg
    8 MPPTs
  • icon_06.svg
    Support Night SVG

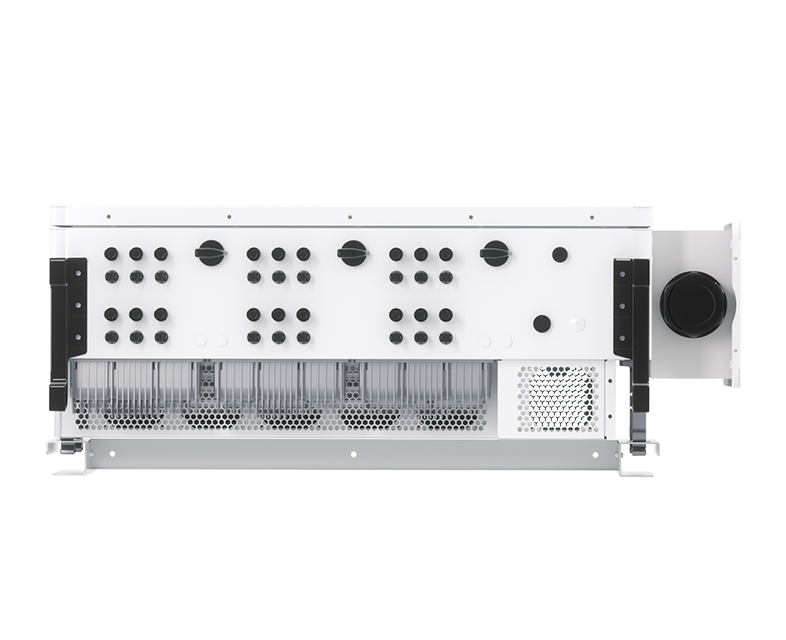

Bottom view of Solavita on-grid 125kw inverter showcasing PV input and communication ports, designed for efficient integration in solar energy systems, ideal for commercial and industrial installations
Flexible Control & Monitoring

The inverter can monitor the power of PV strings in different directions  flexibly. At the same time, multiple communication methods can automatically upload operating parameters to the cloud and support remote software upgrade. Combined with Mysolavita,users can achieve 24h-data smart monitoring to protect the Commerical PV system safety.

  • icon_07.svg
    Remote firmware upgrade
  • icon_08.svg
    24h-data smart monitoring

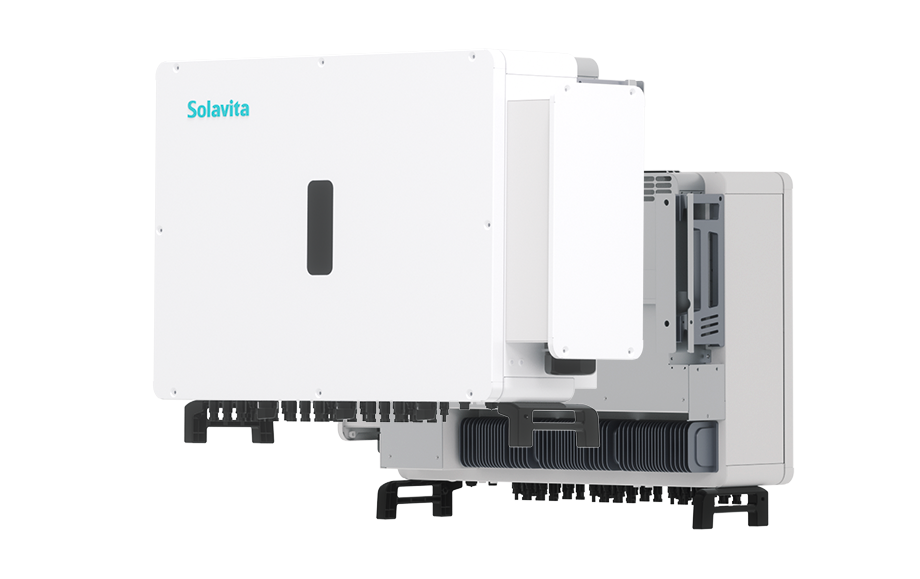

Image of a Solavita on-grid inverter, showcasing its robust design and multiple connection ports. Suitable for three-phase solar inverter applications in commercial and industrial (C&I) settings, providing efficient energy management and reliability in on-grid systems

Core Parameters

  • Max. Input Voltage
    1100V
  • MPPT Voltage Range
    200-1000V
  • Start-up Voltage
    350V
  • Max. Efficiency
    98.70%
  • Euro Efficiency
    98.50%
  • Communication
    RS485/PLC
  • DC/AC Surge Protection
    DC Type Ⅱ;AC Type Ⅱ
  • No. of MPPT Trackers
    8
  • No. of PV Strings per MPPT
    2

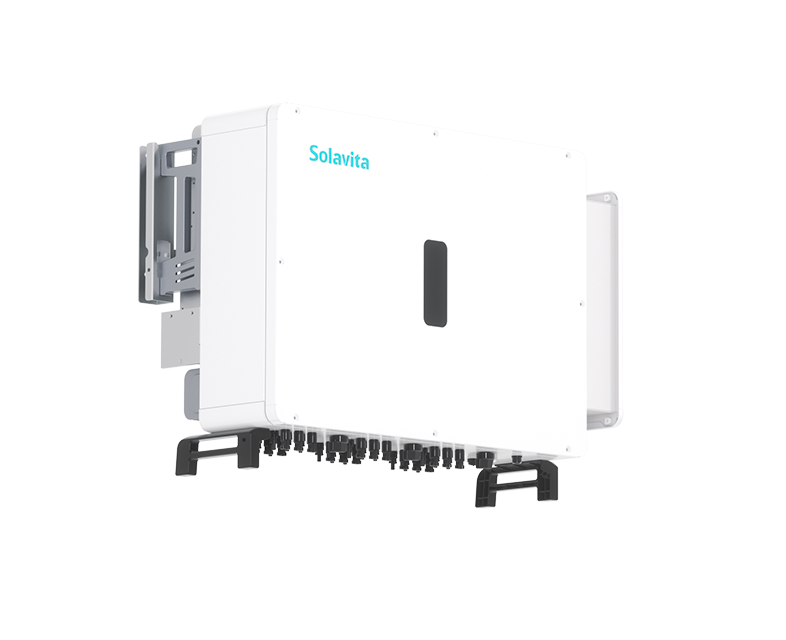

Solavita on-grid inverter with dual cooling fans on the side, designed for efficient energy management in residential and commercial applications, showcasing robust three-phase functionality

Effortless Swipe, Exceptional Performance

Developed with Top-Tier Technology and Rigorous Testing, What You See Is What You Get

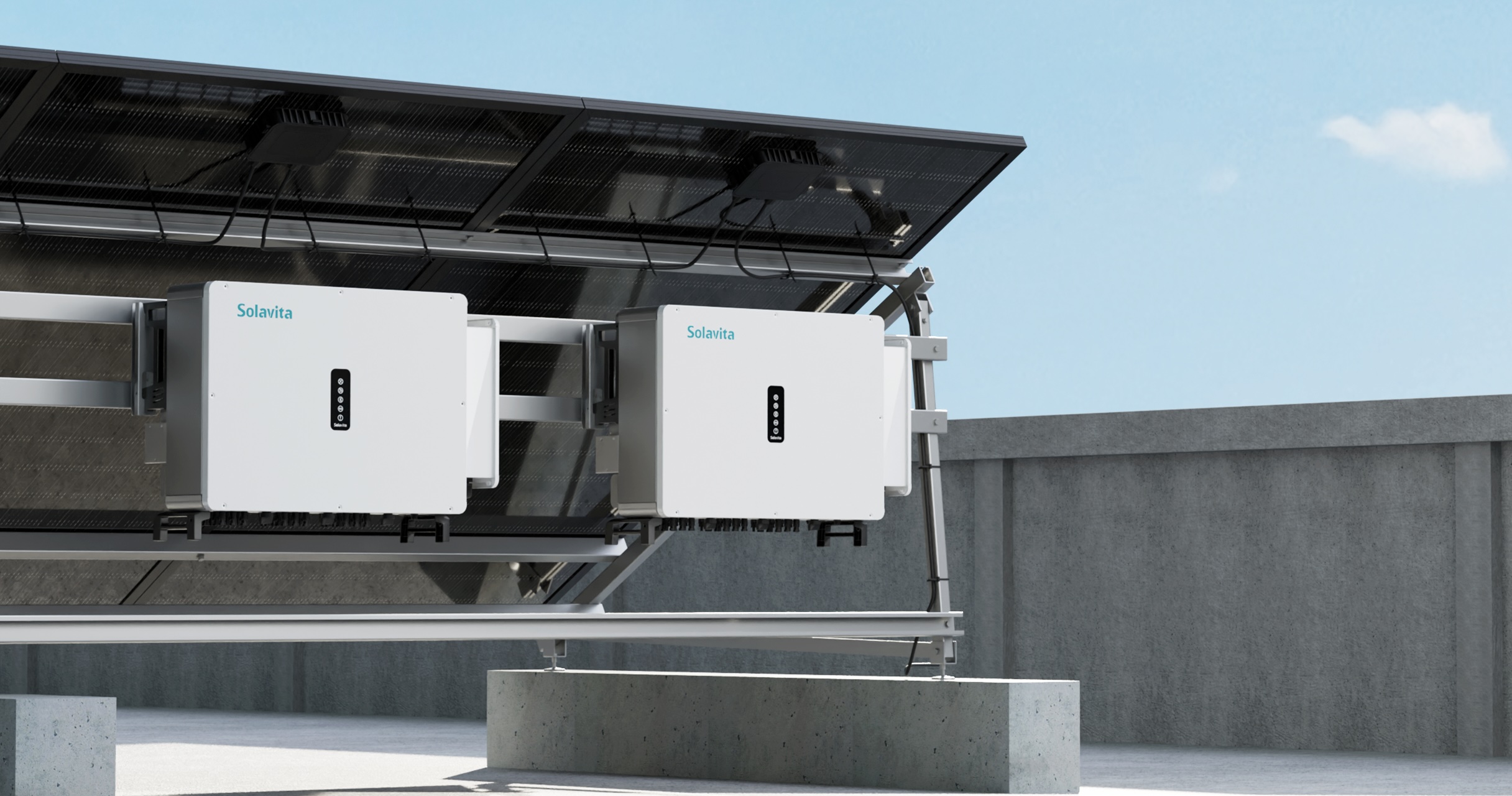

C&I PV Inverter solutuons.jpg

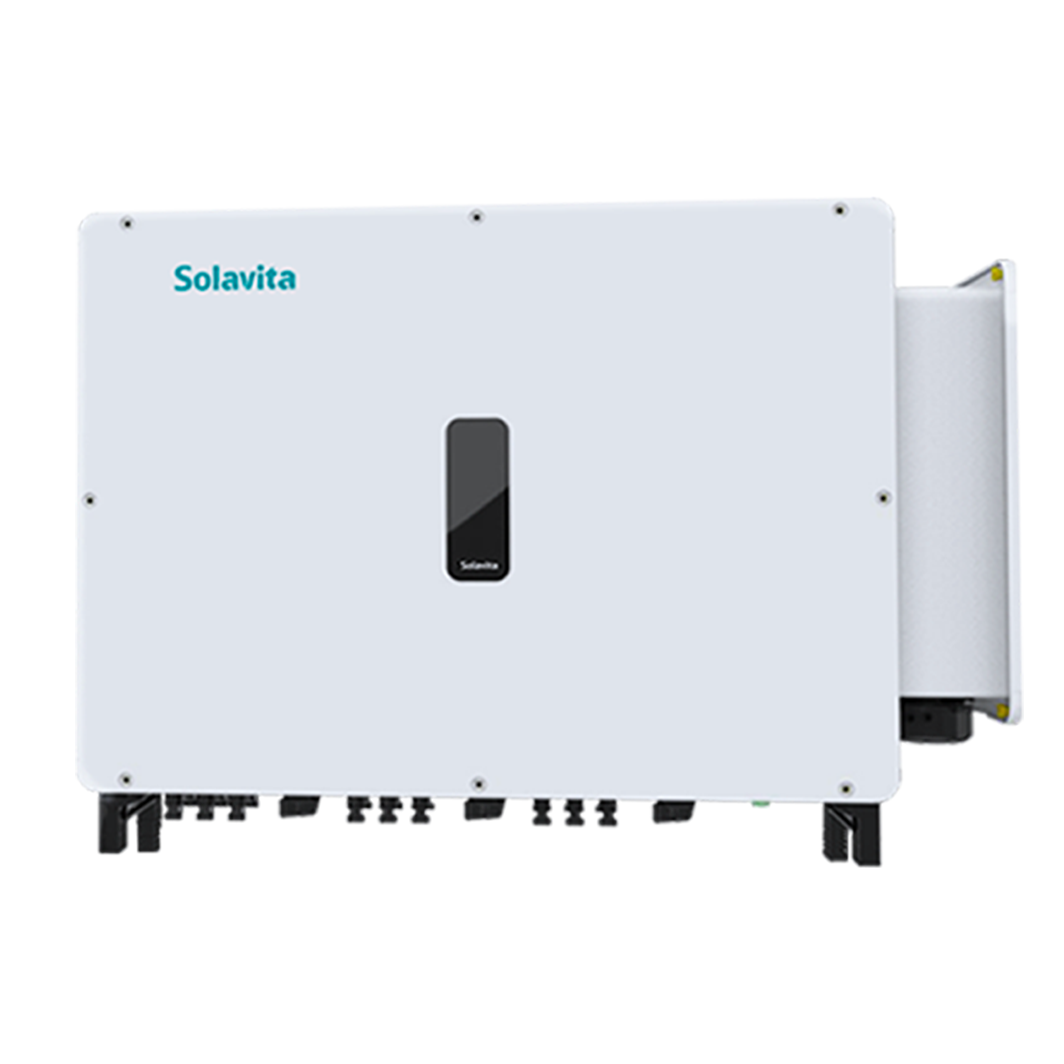

  • A white Solavita on-grid three phase 125kW inverter with multiple black connectors at the bottom and a small display panel on the front. The Solavita logo appears in blue in the upper left corner, highlighting its streamlined design and efficient functionality.

Product Model

    • Model
    • SW125KTL-T1
      • DC Input
      • Max. Input Voltage [V]
        1100
      • MPPT Voltage Range [V]
        200~1000
      • Rated Input Voltage [V]
        650
      • Start-up Voltage [V]
        350
      • No. of MPPT
        8
      • No. of PV Strings per MPPT
        2
      • Max. Input Current per MPPT [A]
        40
      • Max. Short Circuit Current per MPPT [A]
        60
      • AC Output
      • Rated Output Power [W]
        125000
      • Max. Output Appearent Power [VA]
        125000
      • Max.Output Current [A]
        181.2
      • Rated Grid Voltage [V]
        3L/N/PE; 220/380, 230/400
      • Rated Grid Frequency [Hz]
        50/60
      • Power Factor [cos Φ]
        1 (+/-0.8, adjustable)
      • Efficiency
      • Max. Efficiency
        98.70%
      • Euro Efficiency
        98.50%
      • Protection
      • DC Switch
        Integrated
      • Anti-islanding Protection
        Integrated
      • Output Over Current Protection
        Integrated
      • DC Reverse Polarity Protection
        Integrated
      • String Fault Detection
        Optional
      • DC/AC Surge Protection
        DC Type Ⅱ;AC Type Ⅱ
      • AC Short Circuit Protection
        Integrated
      • AFCI Function
        Optional
      • Night SVG Function
        Optional
      • PID Recovery
        Optional
      • Insulation Detection
        Integrated
      • Residual Curent Monitoring
        Integrated
      • General Data
      • Dimensions (W*H*D)[mm]
        965*700*355
      • Weight [kg]
        85
      • Display
        LED, Bluetoothn+APP
      • Communication
        RS485/PLC
      • Operating Temperature Range [°C]
        -30~+60
      • Relative Humidity
        0~100%
      • Operation Altitude [m]
        ≤4000(if>2000, Power Reduction Needed)
      • Topology
        Transformerless
      • Cooling Concept
        Smart Fan-cooling
      • Ingress Protection
        IP66
