SW 7-10KTL-S1

Single Phase On Grid Inverter (HV)

The Solavita PV 7-10kw inverters wall-mounted with the Solavita logo on the central unit. Each inverter features various connectors and a small black panel on the front, providing efficient energy management for modern energy solutions.
A close-up of a Solavita on-grid inverter (7-10kW) with a ribbed back surface and three cables connected at the bottom. The sleek design in white and gray tones highlights its robust functionality, providing a modern energy solution.

More Friendly & Safe Design

Our single-phase on-grid inverter features a well-engineered inductor layout, ensuring optimal performance and efficiency. It boasts an IP66 protection rating, making it resilient to extreme temperature variations. The inverter automatically alerts for PV reverse polarity and supports fan self-diagnosis.

  • icon_01.svg

    Optional AFCI

  • b2_icon_02.svg

    IP66

  • icon_03.svg

    Type Ⅱ SPD and both DC and AC

Higher power generation,Higher Return

solavita single phase on-grid inverter(7-10kW) offers higher power generation efficiency, supports 1.5 times DC overloading,wide voltage range,low start-up voltage at 100V, perfectly compatible with mainstream PV modules. Additionally, it can operate at 1.1 times its rated capacity for extended periods without derating, ensuring efficient and stable system performance.

  • icon_04.svg
    110% AC overloading
  • icon_04.svg
    150% DC oversizing
  • icon_04.svg
    100 V start-up voltage
The Solavita single phase 7-10kW inverter with multiple MPPT black knobs and connectors, mounted on a gray base with vertical metal fins for enhanced cooling, showcasing precise and organized design for solavita efficient energy management.
Flexible Control & Monitoring

Users can enjoy smart energy management with 24-hour load consumption monitoring enabled by Mysolavita. Thanks to the integrated export power limit,the inverter can adapt to the power limit imposed by the local energy provider. Smart solution, smart energy.

  • icon_05.svg
    Remote firmware upgrade
  • icon_06.svg
    24h-data smart monitoring
  • icon_07.svg
    Wifi/4G (Optional)
A compact white Solavita 7-10kw On-grid inverter with a sleek design, featuring a small black display on the front and several connectors at the bottom, compatible with Solavita Cloud Monitoring for real-time energy management and remote monitoring capabilities.

Core Parameters

  • Max. Input Voltage
    550V
  • MPPT Voltage Range
    60~500V
  • Start-up Voltage
    70V
  • Max. Efficiency
    98.00%
  • Euro Efficiency
    97.50%
  • Communication
    RS485/Wifi/LAN/4G (Optional)
  • DC/AC Surge Protection
    Integrated (Type Ⅱ)
  • No. of MPPT Trackers
    3
  • No. of PV Strings per MPPT
    1
  • Max.Input Current per MPPT [A]
    16

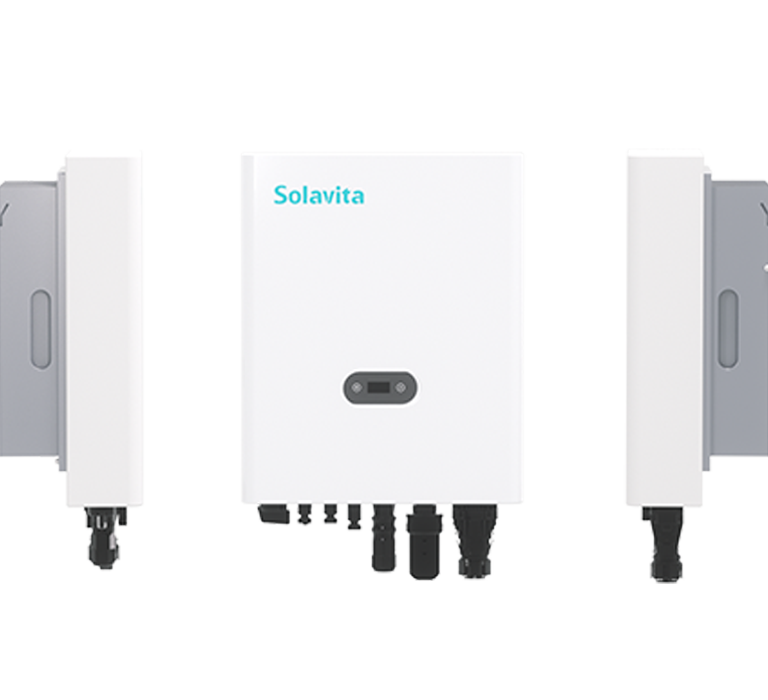

The white Solavita inverter features a compact design on both the front and back, with a front display panel and multiple connectors on the bottom, designed for efficient energy management and compatible with the Solavita Cloud for remote monitoring

Effortless Swipe, Exceptional Performance

Developed with Top-Tier Technology and Rigorous Testing, What You See Is What You Get

singl-phase on-grid inverter.jpg

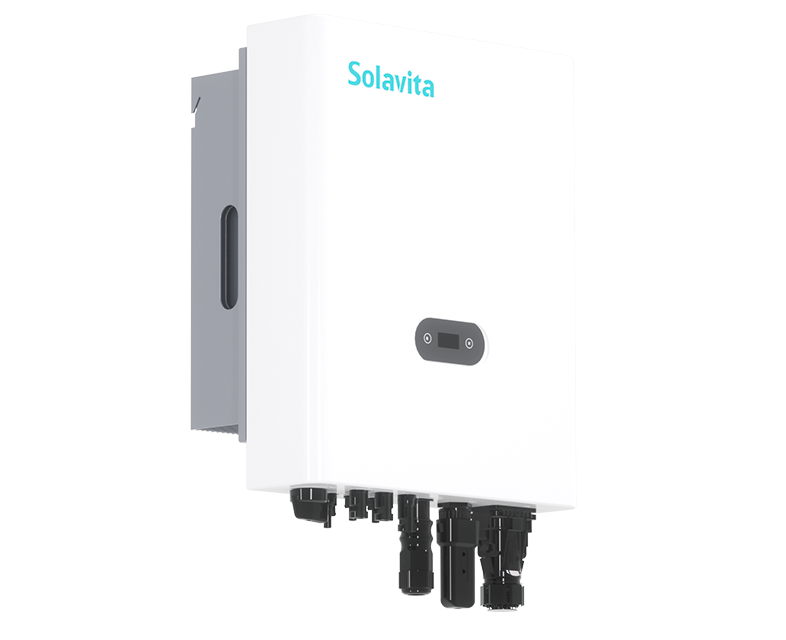

  • A white Solavita on-grid single phase 7-10kW inverter with multiple black connectors at the bottom and a small display panel on the front. The Solavita logo appears in blue in the upper left corner, highlighting its streamlined design and efficient functionality.

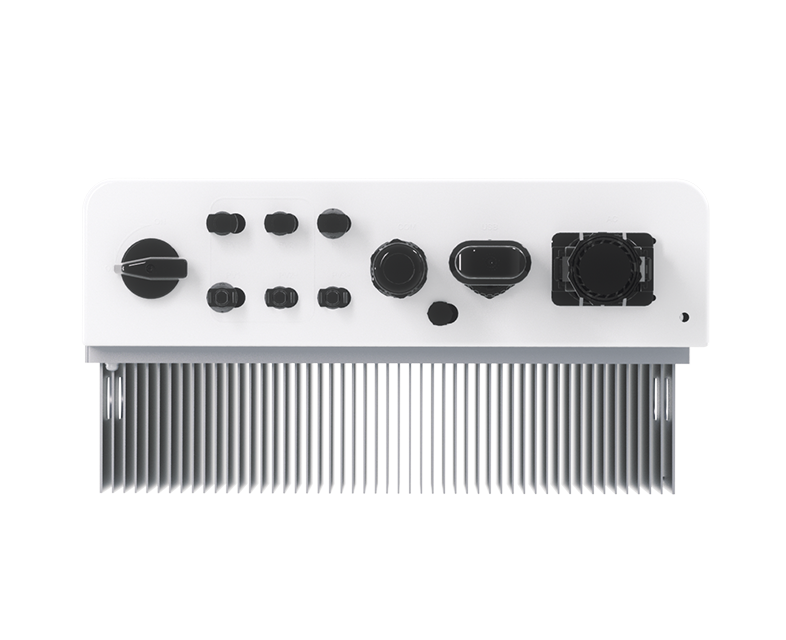

  • A white Solavita on-grid single phase 7-10kW inverter with multiple black connectors at the bottom and a small display panel on the front. The Solavita logo appears in blue in the upper left corner, highlighting its streamlined design and efficient functionality.

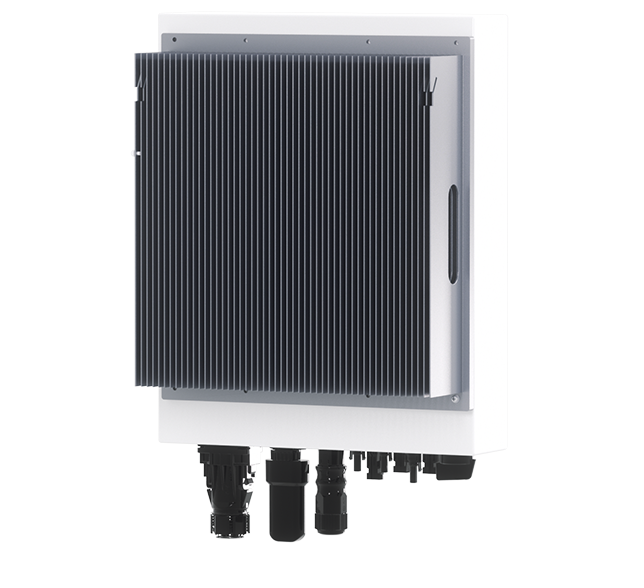

  • A white Solavita on-grid single phase 7-10kW inverter with multiple black connectors at the bottom and a small display panel on the front. The Solavita logo appears in blue in the upper left corner, highlighting its streamlined design and efficient functionality.

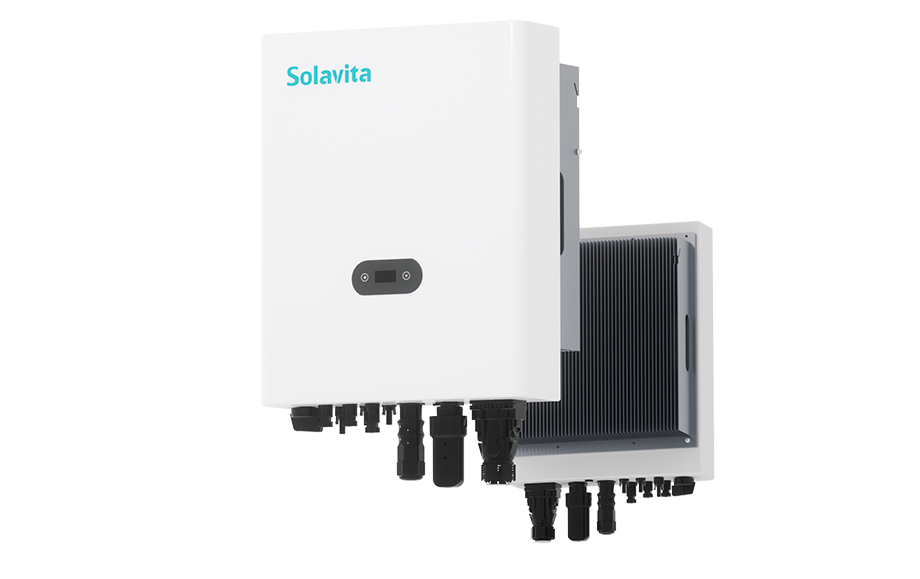

  • A white Solavita on-grid single phase 7-10kW inverter with multiple black connectors at the bottom and a small display panel on the front. The Solavita logo appears in blue in the upper left corner, highlighting its streamlined design and efficient functionality.

Product Model

    • Model
    • SW7000TL-S1
      • DC Input
      • Max.Input power [W]
        10500
      • Max. Input Voltage [V]
        550
      • MPPT Voltage Range [V]
        60-500
      • Rated Input Voltage [V]
        360
      • Start-up Voltage [V]
        70
      • No. of MPPT Trackers
        3
      • No. of PV Strings per MPPT
        1
      • Max. Input Current per MPPT [A]
        16
      • Max. Short Circuit Current per MPPT [A]
        20
      • AC Output
      • Rated Output Power [W]
        7000
      • Max. Output Appearent Power [VA]
        7000
      • Max. Output Current [A]
        31.8
      • Rated Grid Voltage [V]
        L/N/PE, 220/230/240
      • Rated Grid Frequency [Hz]
        50/60
      • Power Factor[cosΦ]
        1(+/-0.8, adjustable)
      • Efficiency
      • Max. Efficiency
        98.00%
      • Euro Efficiency
        97.50%
      • Protection
      • DC Switch
        Integrated
      • Insulation Resistance Detection
        Integrated
      • Input Reverse Polarity Protection
        Integrated
      • Anti-island Protection
        Integrated
      • Residual Current Monitoring
        Integrated
      • AC Overcurrent Protection
        Integrated
      • AC Short-circuit Protection
        Integrated
      • DC Surge Protection
        Integrated (Type ll)
      • AC Surge Protection
        Integrated (Type ll)
      • IV Curve scanning
        Integrated
      • 24-hour load monitoring
        Optional
      • DC Arc Protection
        Optional
      • General Data
      • Dimensions (W*H*D) [mm]
        428*385*185
      • Weight [kg]
        17
      • Display
        LED+LCD/Bluetooth+App
      • Communication
        RS485/Wifi/LAN/4G (Optional)
      • Operating Temperature Range [C]
        -30~+60
      • Relative Humidity
        0~100%
      • Operation Altitude [m]
        ≤4000(if>2000, derating)
      • Topology
        Transformerless
      • Ingress Protection
        IP66
      • Cooling Concept
        Natural cooling
    • Model
    • SW8000TL-S1
      • DC Input
      • Max.Input power [W]
        12000
      • Max. Input Voltage [V]
        550
      • MPPT Voltage Range [V]
        60-500
      • Rated Input Voltage [V]
        360
      • Start-up Voltage [V]
        70
      • No. of MPPT Trackers
        3
      • No. of PV Strings per MPPT
        1
      • Max. Input Current per MPPT [A]
        16
      • Max. Short Circuit Current per MPPT [A]
        20
      • AC Output
      • Rated Output Power [W]
        8000
      • Max. Output Appearent Power [VA]
        8000
      • Max. Output Current [A]
        36.4
      • Rated Grid Voltage [V]
        L/N/PE, 220/230/240
      • Rated Grid Frequency [Hz]
        50/60
      • Power Factor[cosΦ]
        1(+/-0.8, adjustable)
      • Efficiency
      • Max. Efficiency
        98.00%
      • Euro Efficiency
        97.50%
      • Protection
      • DC Switch
        Integrated
      • Insulation Resistance Detection
        Integrated
      • Input Reverse Polarity Protection
        Integrated
      • Anti-island Protection
        Integrated
      • Residual Current Monitoring
        Integrated
      • AC Overcurrent Protection
        Integrated
      • AC Short-circuit Protection
        Integrated
      • DC Surge Protection
        Integrated (Type ll)
      • AC Surge Protection
        Integrated (Type ll)
      • IV Curve scanning
        Integrated
      • 24-hour load monitoring
        Optional
      • DC Arc Protection
        Optional
      • General Data
      • Dimensions (W*H*D) [mm]
        428*385*185
      • Weight [kg]
        17
      • Display
        LED+LCD/Bluetooth+App
      • Communication
        RS485/Wifi/LAN/4G (Optional)
      • Operating Temperature Range [C]
        -30~+60
      • Relative Humidity
        0~100%
      • Operation Altitude [m]
        ≤4000(if>2000, derating)
      • Topology
        Transformerless
      • Ingress Protection
        IP66
      • Cooling Concept
        Natural cooling
    • Model
    • SW9000TL-S1
      • DC Input
      • Max.Input power [W]
        13500
      • Max. Input Voltage [V]
        550
      • MPPT Voltage Range [V]
        60-500
      • Rated Input Voltage [V]
        360
      • Start-up Voltage [V]
        70
      • No. of MPPT Trackers
        3
      • No. of PV Strings per MPPT
        1
      • Max. Input Current per MPPT [A]
        16
      • Max. Short Circuit Current per MPPT [A]
        20
      • AC Output
      • Rated Output Power [W]
        9000
      • Max. Output Appearent Power [VA]
        9000
      • Max. Output Current [A]
        40.9
      • Rated Grid Voltage [V]
        L/N/PE, 220/230/240
      • Rated Grid Frequency [Hz]
        50/60
      • Power Factor[cosΦ]
        1(+/-0.8, adjustable)
      • Efficiency
      • Max. Efficiency
        98.00%
      • Euro Efficiency
        97.50%
      • Protection
      • DC Switch
        Integrated
      • Insulation Resistance Detection
        Integrated
      • Input Reverse Polarity Protection
        Integrated
      • Anti-island Protection
        Integrated
      • Residual Current Monitoring
        Integrated
      • AC Overcurrent Protection
        Integrated
      • AC Short-circuit Protection
        Integrated
      • DC Surge Protection
        Integrated (Type ll)
      • AC Surge Protection
        Integrated (Type ll)
      • IV Curve scanning
        Integrated
      • 24-hour load monitoring
        Optional
      • DC Arc Protection
        Optional
      • General Data
      • Dimensions (W*H*D) [mm]
        428*385*185
      • Weight [kg]
        17
      • Display
        LED+LCD/Bluetooth+App
      • Communication
        RS485/Wifi/LAN/4G (Optional)
      • Operating Temperature Range [C]
        -30~+60
      • Relative Humidity
        0~100%
      • Operation Altitude [m]
        ≤4000(if>2000, derating)
      • Topology
        Transformerless
      • Ingress Protection
        IP66
      • Cooling Concept
        Natural cooling
    • Model
    • SW010KTL-S1
      • DC Input
      • Max.Input power [W]
        15000
      • Max. Input Voltage [V]
        550
      • MPPT Voltage Range [V]
        60-500
      • Rated Input Voltage [V]
        360
      • Start-up Voltage [V]
        70
      • No. of MPPT Trackers
        3
      • No. of PV Strings per MPPT
        1
      • Max. Input Current per MPPT [A]
        16
      • Max. Short Circuit Current per MPPT [A]
        20
      • AC Output
      • Rated Output Power [W]
        10000
      • Max. Output Appearent Power [VA]
        10000
      • Max. Output Current [A]
        45.5
      • Rated Grid Voltage [V]
        L/N/PE, 220/230/240
      • Rated Grid Frequency [Hz]
        50/60
      • Power Factor[cosΦ]
        1(+/-0.8, adjustable)
      • Efficiency
      • Max. Efficiency
        98.00%
      • Euro Efficiency
        97.50%
      • Protection
      • DC Switch
        Integrated
      • Insulation Resistance Detection
        Integrated
      • Input Reverse Polarity Protection
        Integrated
      • Anti-island Protection
        Integrated
      • Residual Current Monitoring
        Integrated
      • AC Overcurrent Protection
        Integrated
      • AC Short-circuit Protection
        Integrated
      • DC Surge Protection
        Integrated (Type ll)
      • AC Surge Protection
        Integrated (Type ll)
      • IV Curve scanning
        Integrated
      • 24-hour load monitoring
        Optional
      • DC Arc Protection
        Optional
      • General Data
      • Dimensions (W*H*D) [mm]
        428*385*185
      • Weight [kg]
        17
      • Display
        LED+LCD/Bluetooth+App
      • Communication
        RS485/Wifi/LAN/4G (Optional)
      • Operating Temperature Range [C]
        -30~+60
      • Relative Humidity
        0~100%
      • Operation Altitude [m]
        ≤4000(if>2000, derating)
      • Topology
        Transformerless
      • Ingress Protection
        IP66
      • Cooling Concept
        Natural cooling
